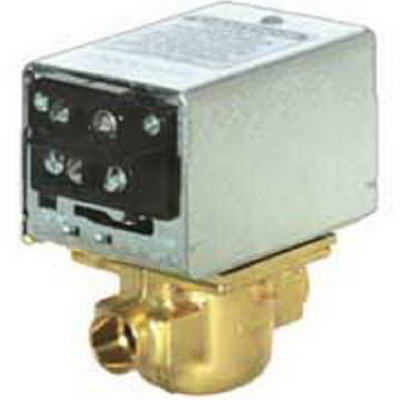

Honeywell 0.8 in. Stainless Steel Zone Valve

Model: V8043F1036

More From Honeywell

Honeywell 0.8 in. Stainless Steel Zone Valve

Model: V8043F1036

More From Honeywell

Zone valve for use in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. For cycling and not constantly powered on applications. 2-way on/off low voltage valve consistent of an actuator and valve assembly for controlling the flow of hot water. 24V 3/4 inch sweat connection low voltage motorized zone valve with 3.5 Cv capacity. Manual opener for valve operation on power failure, valve returns to automatic position when power is restored. Can be installed without disassembling the valve.

Sold out.

FREE Shipping on all orders over $75*

Zone valve for use in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. For cycling and not constantly powered on applications. 2-way on/off low voltage valve consistent of an actuator and valve assembly for controlling the flow of hot water. 24V 3/4 inch sweat connection low voltage motorized zone valve with 3.5 Cv capacity. Manual opener for valve operation on power failure, valve returns to automatic position when power is restored. Can be installed without disassembling the valve.
Zone valve for use in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh wat...
See more

Dimensions

Weight (lb)
2.2
Length (in.)
5.9
Width (in.)
5
Height (in.)
3.7

Details

UPC
085267000765
Manufacturer Part No
V8043F1036
Brand Name
Honeywell
Inlet Size
0.8 in.
Material
Stainless Steel
Product Type
Zone Valve
Minimum Working Temperature
50 deg. F
Inner Material
Brass
Outlet Size
0.8 in.
Maximum Working Temperature
200 deg. F
Connection Type
Sweat
Outer Material
Stainless Steel
Length
3.5 in.
Maximum Temperature
200 deg. F
Combination
Yes
Automatic
Yes
Maximum Pressure
20 psi
Voltage
24 volt
Minimum Working Temperature
50 °F
Maximum Temperature
200 °F
Maximum Working Temperature
200 °F
