DISCONTINUED
UPC: 851890000072
SUPPLIER: Reliance Controls
Reliance Controls 20 amps 125/250 V 1 space 4 circuits Surface Mount Power Inlet Box - Deal of The Week
View product details
DISCONTINUED
UPC: 851890000072
SUPPLIER: Reliance Controls
Reliance Controls 20 amps 125/250 V 1 space 4 circuits Surface Mount Power Inlet Box - Deal of The Week
View product details

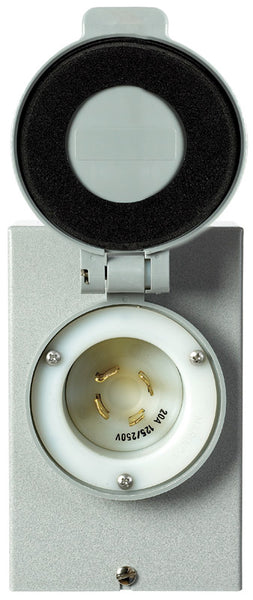

The rain tight NEMA 3R power inlet box is designed for the use with the Pro/Tran transfer switches and Reliance Panel/Link manual transfer panels and generator ready load centers. The power inlet box may be installed indoors or outdoors in an open area where the generator is being used. Using one of the four combination 1/2 inch and 3/4 inch knockouts (one on each side, bottom and back) the power inlet box can be wired directly to the transfer switch or panel. The exclusive patented design provides generous wiring space and facilitates rough in. The PR Series includes circuit breakers that match the amperage of the power inlet. The rain tight NEMA 3R PBN Series non metallic power inlet box is designed for use with the Pro/Tran transfer switches and Panel/Link manual transfer panels and generator ready load centers. This power inlet box must be installed outdoors in an open area where the generator is being used. Using one of the three inch knockouts (one each on the sides and back) the power inlet box can be wired directly to the transfer switch or panel. The patented design provides over 100 cubic inch of wiring space and the slide out base allows easy 360 degree access to the flanged inlet.
The rain tight NEMA 3R power inlet box is designed for the use with the Pro/Tran transfer switches and Reliance Panel/Link...
See more
Product Details
California residents see
-
Prop 65 WARNINGS
UPC
851890000072
Manufacturer Part No
PB-20
Amps
20 amps
Volts
125/250 V
Packaging Type
Boxed
Width
4 in.
Brand Name
Reliance Controls
Product Type
Power Inlet Box
Number of Spaces
1 space
UL Listed
Yes
Height
6 in.
Includes a NEMA L14-20P flanged inlet plug, inlet
Includes a NEMA L14-20P flanged inlet plug, inlet cover, four combination 1/2 and 3/4 inch knockouts
Circuit Protection Type
Single Pole
Depth
2-5/8 in.
Mounting Type
Surface Mount
Maximum Number of Circuits
4 circuits
Indoor or Outdoor
Outdoor
Breakers Included
Yes
View more
