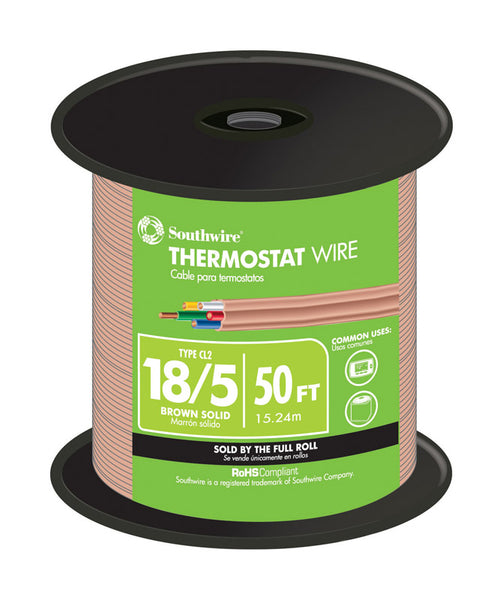

Southwire 50 ft. 18/5 Solid Copper Thermostat Wire
View product details
Southwire 50 ft. 18/5 Solid Copper Thermostat Wire
View product details
$15.99
Sold out
Prices are subject to change once back in stock
18 gauge, 5 conductor, solid copper thermostat wire, class 2 power limited circuit cable, brown jacket. Southwire thermostat wire is manufactured using solid copper conductors with 6 mils of polyvinyl chloride PVC insulation. The two conductor cable is flat multiconductor cables are round. Southwire's thermostat wire is a class 2 power limited circuit cable for use in heating and air conditioning controls bell and alarm systems. Southwire's thermostat cable adheres to the following specifications class 2 power limited per NEC article 725, MP multi purpose cable per articles 725, 760 and 800, CM communication cable per article 800, FPL power limited fire protective signaling cable per article 760, sunlight resistant, PVC insulation and solid bare copper per UL standard 13, RoHS compliant, OSHA acceptable. Southwire provides a full line of products, in both copper and aluminum, for a wide range of applications. The Company leads the industry in new and innovative products that help simplify installation, saving time and money. In addition to its standard product line, Southwire can also make custom products offering its customers the most complete line of products for almost any requirement or situation. No matter what the residential, commercial or industrial application requires, you need look no farther. Southwire has just the right wire and cable product you're looking for.
18 gauge, 5 conductor, solid copper thermostat wire, class 2 power limited circuit cable, brown jacket. Southwire thermost...
See more
Package Dimensions
Weight (lb)
1.7
Length (in.)
4.1
Width (in.)
4.1
Height (in.)
3.25
Product Details
UPC
032886855979
Manufacturer Part No
64169622
Brand Name
Southwire
Wire Length
50 ft.
Stranded or Solid
Solid
Cable or Wire Type
Copper
Gauge/Conductors
18/5
Product Type
Thermostat Wire
Color
Brown
Ground Material
Copper
Number of Conductors
5
Jacket Material
Copper
Conductor Material
Copper
Sunlight/UV Resistant
Yes
Flame Retardant
Yes
Conductor Gauge
18 Ga.
Amp Rating
15 amps
Wet Location Use
No
Indoor or Outdoor
Indoor
Insulation Material
Thermoplastic
Direct Burial
Yes
UL Listed
yes
Voltage Rating
150 V
Temperature Rating
-20 to 60 °F
