Watts 3/4 in. MNPT Brass Calibrated Pressure Relief Valve 3/4 in. FNPT 1 pc

More From Watts

Watts 3/4 in. MNPT Brass Calibrated Pressure Relief Valve 3/4 in. FNPT 1 pc

More From Watts

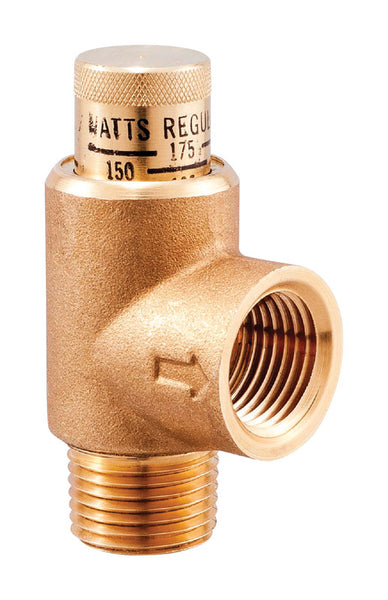

This 3/4 inch lead free calibrated pressure relief valve is designed for use only as protection from the build up of excessive pressure in systems containing water, oil or air. It features a lead free brass body with 3/4 inch NPT male inlet and 1/2 inch NPT female (drain) outlet, stainless steel spring, lead free brass bonnet and a Buna-N disc and O-ring.

Sold out.

FREE Shipping on all orders over $75*

This 3/4 inch lead free calibrated pressure relief valve is designed for use only as protection from the build up of excessive pressure in systems containing water, oil or air. It features a lead free brass body with 3/4 inch NPT male inlet and 1/2 inch NPT female (drain) outlet, stainless steel spring, lead free brass bonnet and a Buna-N disc and O-ring.
This 3/4 inch lead free calibrated pressure relief valve is designed for use only as protection from the build up of exces...
See more

Dimensions

Weight (lb)
0.5
Length (in.)
3.75
Width (in.)
2.25
Height (in.)
1.5

Details

UPC
098268472530
Manufacturer Part No
LF530-C 3/4"
Brand Name
Watts
End 1 Size
3/4 in.
End 1 Type
MNPT
Body Material
Brass
End 2 Size
3/4 in.
End 2 Type
FNPT
Maximum Pressure
300 psi
Lead Content
Lead-Free
Adjustable
Yes
Packaging Type
Boxed
Product Type
Calibrated Pressure Relief Valve
Minimum Temperature
N/A
Number in Package
1 pc
Maximum Temperature
180 °F
