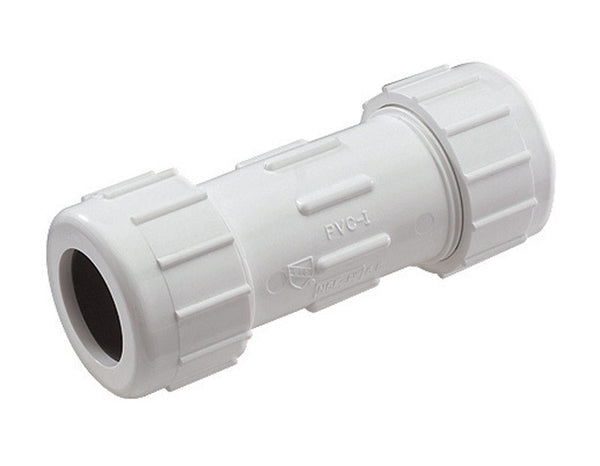

NDS Schedule 40 3/4 in. Compression each X 3/4 in. D Compression PVC Coupling 1 pk

More From NDS

Model: 160-104

NDS Schedule 40 3/4 in. Compression each X 3/4 in. D Compression PVC Coupling 1 pk

More From NDS

Model: 160-104
3/4 inch Compression Coupling. NDS PVC IPS compression fittings are used in residential and commercial DWV, Irrigation, Pool and Schedule 40 pressure applications. Compression cap should be drawn up hand tight to insure proper alignment and seating of gasket, then tighten 3/4 to 1 turn with a flo spanner wrench or strap wrench. Average torque should be approximately 25 feet lbs. on 1/2 inch through 2 inch IPS and 35 feet lbs. on 2-1/2 inch and larger IPS. Compression fittings are not for use on compressed air lines or natural gas lines. When installing the standard compression seal fittings the pipe line must be restrained from lateral movement by thorough soil compaction on straight runs and thrust blocking at change of direction or reduction in size.

Sold out.

FREE Shipping on all orders over $99*

3/4 inch Compression Coupling. NDS PVC IPS compression fittings are used in residential and commercial DWV, Irrigation, Pool and Schedule 40 pressure applications. Compression cap should be drawn up hand tight to insure proper alignment and seating of gasket, then tighten 3/4 to 1 turn with a flo spanner wrench or strap wrench. Average torque should be approximately 25 feet lbs. on 1/2 inch through 2 inch IPS and 35 feet lbs. on 2-1/2 inch and larger IPS. Compression fittings are not for use on compressed air lines or natural gas lines. When installing the standard compression seal fittings the pipe line must be restrained from lateral movement by thorough soil compaction on straight runs and thrust blocking at change of direction or reduction in size.
3/4 inch Compression Coupling. NDS PVC IPS compression fittings are used in residential and commercial DWV, Irrigation, Po...
See more

Dimensions

Weight (lb)
0.2
Length (in.)
5
Width (in.)
1.9
Height (in.)
1.9

Details

California residents see
  • Prop 65 WARNINGS
    Prop 65 WARNINGS Prop 65 WARNINGS: This product can expose you to chemicals, including Vinyl Chloride whis is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
UPC
052063033105
Manufacturer Part No
CPC-0750
Brand Name
NDS
Schedule Type Number
Schedule 40
End 1 Diameter
3/4 in.
End 2 Diameter
3/4 in.
End 2 Type
Compression
Material
PVC
Product Type
Coupling
IAPMO Certified
Yes
ANSI Certified
Yes
Application
Direct Connect
NSF Listed
Yes
Packaging Type
Bulk
Maximum Pressure
150 psi
Number in Package
1 pk
Average Lead Content
Lead-Free
End 1 Type
Compression each
Maximum Temperature
140 °F
View more
