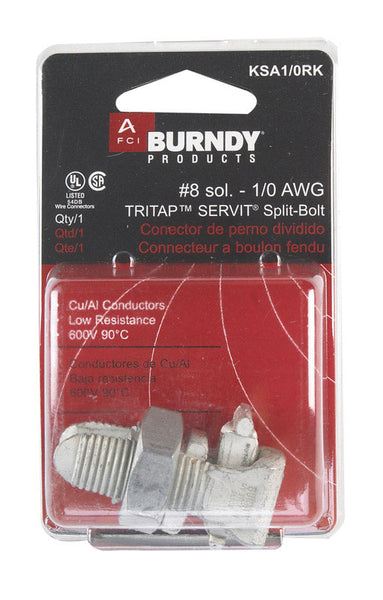

Burndy Tritap Servit Split Bolt Cable Connector 1 pk

Model: KSA1/0RK

More From Burndy

Burndy  Tritap Servit  Split Bolt  Cable Connector  1 pk

Burndy Tritap Servit Split Bolt Cable Connector 1 pk

Model: KSA1/0RK

More From Burndy

Hubbell Electrical/Burndy Tritap Servit Split bolt connector is made of aluminum alloy for longer service life. It offers maximum pressure and assures a secure connection of run and tap conductors. It measures 1-1/3 inch x 0.750 inch x 0.850 inch. Connector with 3/4-inch bolt size orients the conductor and provides low contact resistance. It inhibits the reformation of oxides by producing a gas-tight seal. Connector in tin plated finish is ideal for all combinations of aluminum to aluminum, aluminum to copper and copper to copper. It can accommodate aluminum run of 2-1/0 AWG, stranded copper 2-1/0 AWG and solid copper/aluminum tap of 8-1/0 AWG. It has temperature rating of 90 degree Celsius and torque range of 385 inch-lbs. Connector is UL listed and CSA certified.

Sold out.

FREE Shipping on all orders over $99*

Hubbell Electrical/Burndy Tritap Servit Split bolt connector is made of aluminum alloy for longer service life. It offers maximum pressure and assures a secure connection of run and tap conductors. It measures 1-1/3 inch x 0.750 inch x 0.850 inch. Connector with 3/4-inch bolt size orients the conductor and provides low contact resistance. It inhibits the reformation of oxides by producing a gas-tight seal. Connector in tin plated finish is ideal for all combinations of aluminum to aluminum, aluminum to copper and copper to copper. It can accommodate aluminum run of 2-1/0 AWG, stranded copper 2-1/0 AWG and solid copper/aluminum tap of 8-1/0 AWG. It has temperature rating of 90 degree Celsius and torque range of 385 inch-lbs. Connector is UL listed and CSA certified.
Hubbell Electrical/Burndy Tritap Servit Split bolt connector is made of aluminum alloy for longer service life. It offers ...
See more

Dimensions

Weight (lb)
0.1
Length (in.)
1.5
Width (in.)
3
Height (in.)
5

Details

California residents see
  • Prop 65 WARNINGS
    Prop 65 WARNINGS Prop 65 WARNINGS: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
UPC
781810412138
Manufacturer Part No
KSA1/0RK
Sub Brand
Tritap Servit
Product Type
Cable Connector
Connector Type
Split Bolt
Brand Name
Burndy
Number in Package
1 pk
Compatible Wire Range
8-1/0 AWG
CSA Listed
Yes
Electrical Fitting Type
Split Bolt Connector
Application
all combinations of aluminum and copper conductors
Packaging Type
Carded
UL Listed
Yes
Indoor or Outdoor
Indoor/Outdoor
ETL Listed
No
Application
All combinations of aluminum and copper conductors
Compatible Wire Range
8-1/0
View more
