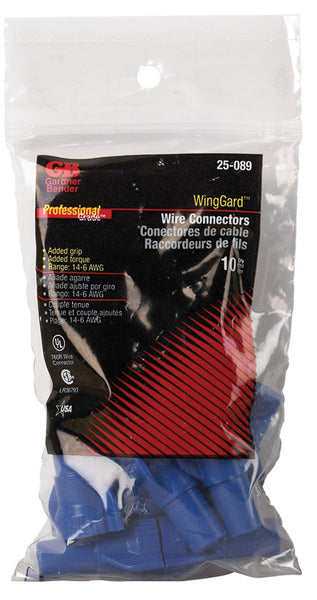

Gb Wire Connector Large Twist-On Blue 10 / Polybag

Gb Wire Connector Large Twist-On Blue 10 / Polybag

More from Wingguard

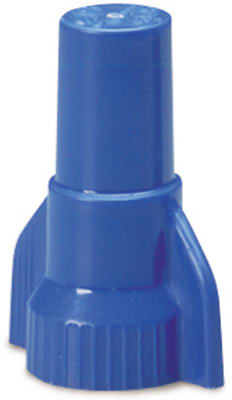

GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

$6.46 Was: $7.75

- +
FREE Free Shipping on all orders! view details

Shipping Terms and Conditions


At Max Warehouse we make shipping easy and understandable. We gladly ship to all 48 contiguous states in the USA and process orders as quickly as we can, normally within 1-3 business days. Please note that we are currently working on shipping to Alaska, Hawaii and Puerto Rico.


Actual shipping times vary between 1-5 business days. Most often, the total time to receive your order is 2-8 business days. We normally ship using services offered by DHL, Fedex, UPS or USPS.


Standard shipping usually takes 3-5 business days.


Note: We offer free ground shipping for all orders.

Customer Support:

ChatChat

Email Us Email Us

Tel: +1- 800 - 210 - 0132

  • UPC: 32076002664
  • Manufacturer Part No: 25-089
  • Unsurpassed quality and durability in a high-leverage, easy-on wing-type design
  • Easy-on, easy-off without tools
  • Expandable square-wire spring instantly adjusts to the shape and size of the splice, then bites down to thread onto the wires without ratcheting and creates a strong, vibration-resistant connection
  • Temperature rating: 105° C, 221° F
  • Tough thermoplastic shell shields against environmental extremes
  • Flame-retardant, non-porous, and non-corrosive shell resists surface cracking and chemical action
  • No pre-twisting or tools are necessary
  • Buttress threads screw into wire insulation
  • Superior flash-over protection, high dielectric shell features deep skirt design to prevent exposure of bare wire
  • One #10 with one #12 minimum wire and one #6 STR with two #8 STR maximum wire
  • #14 to #6 AWG wire range
  • Blue
  • 10 per bag
  • Temperature rating: 105� C, 221� F

Product Details

  • UPC: 32076002664
  • Manufacturer Part No: 25-089
  • Unsurpassed quality and durability in a high-leverage, easy-on wing-type design
  • Easy-on, easy-off without tools
  • Expandable square-wire spring instantly adjusts to the shape and size of the splice, then bites down to thread onto the wires without ratcheting and creates a strong, vibration-resistant connection
  • Temperature rating: 105° C, 221° F
  • Tough thermoplastic shell shields against environmental extremes
  • Flame-retardant, non-porous, and non-corrosive shell resists surface cracking and chemical action
  • No pre-twisting or tools are necessary
  • Buttress threads screw into wire insulation
  • Superior flash-over protection, high dielectric shell features deep skirt design to prevent exposure of bare wire
  • One #10 with one #12 minimum wire and one #6 STR with two #8 STR maximum wire
  • #14 to #6 AWG wire range
  • Blue
  • 10 per bag
  • Temperature rating: 105� C, 221� F
