MPN: GM40AVE-RD89
UPC: 078275142428

SUPPLIER: INTERMATIC INC

Intermatic Outdoor Digital Timer 277 V Gray

View product details
MPN: GM40AVE-RD89
UPC: 078275142428

SUPPLIER: INTERMATIC INC

Intermatic Outdoor Digital Timer 277 V Gray

View product details
Max Rewards is only available to personal account holders. You can only use one offer per purchase. Gift cards, bulk discounts, promo codes, and max points redemption cannot be combined.

Sold out

-10%
$118.82
$107.14 /each
Notify Me When Available

Prices are subject to change once back in stock

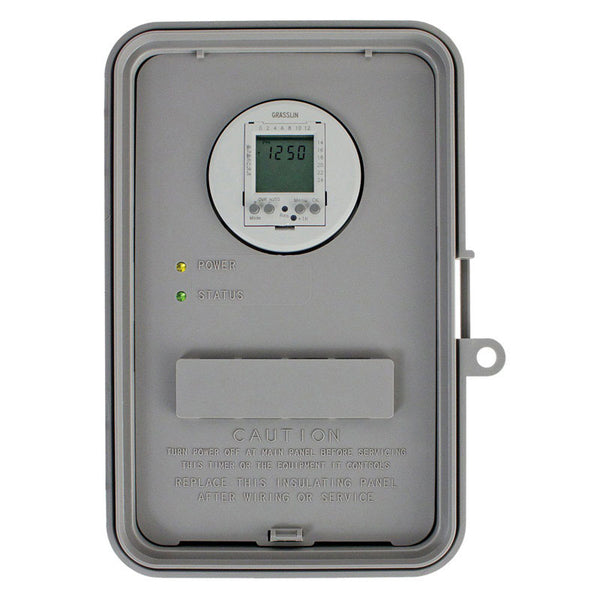

The GM40AVE Auto-Voltage Series 40 Amp Electronic Time Switch is a universal electronic control, which automatically detects the input Voltage without the use of a DIP switch or selector pins. The time switch automatically selects any Voltage between 120 VAC and 277 VAC. It controls high amperage loads for lighting, HVACR, pumps, motors, fan controls, access controls, agricultural facilities and general purpose electrical circuits. The mechanism is mounted in a compact Type 3R outdoor enclosure and features a DPDT Switching Configuration standard.
The GM40AVE Auto-Voltage Series 40 Amp Electronic Time Switch is a universal electronic control, which automatically detec...
See more

Product Details

California residents see
  • Prop 65 WARNINGS
UPC
078275142428
Manufacturer Part No
GM40AVE-RD89
Brand Name
Intermatic
Indoor or Outdoor
Outdoor
Product Type
Digital Timer
Color
Gray
UL Listed
Yes
Programmable
Yes
Number in Package
1 pk
Volts
277 V
Cycles
24 hr
Application
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
Amps
40 amps
Voltage Selection Type
Auto Voltage
Warranty
1 year
Depth
3 in.
Electrical Life
50,000 operations at full load
Electronic Ballast Load Ratings NC Ranges
10 A, 277 VAC, 50/60 Hz
Has Finger-Safe Terminals
Yes
Electronic Ballast Load Ratings NO Ranges
30 A, 120 VAC, 50/60 Hz; 20 A, 277 VAC, 50/60 Hz
Enclosure Type
Outdoor type 3R plastic
Hight
8.88 in.
Motor Load Ratings NC Ranges
1 HP, 12 FLA, 30 LRA, 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA, 240 VAC, 50/60 Hz
Number of Circuits
2
Motor Load Ratings NO Ranges
1 HP, 16 FLA, 96 LRA , 120 VAC, 50/60 Hz; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC, 50/60 Hz
Resistive (NC) Ranges
30 A, 120-277 VAC, 50/60 Hz
Resistive (NO) Ranges
40 A, 120-277 VAC, 50/60 Hz
Switch Type
DPDT
Tungsten Load Ratings NC Ranges
2 A, 120 VAC, 50/60 Hz
Tungsten (NO) Range
15 A, 120 VAC, 50/60 Hz
Width
6.61 in.
Wiring Option
Screw box lug
Wire Size Max
8 AWG
Display Operating Temperature Min (deg C)
-40
Display Operating Temperature Min (deg Fahrenheit)
-40
Temperature (operation)
-40 deg Fahrenheit to 131 deg Fahrenheit
View more

Package Dimensions

Weight (lb)
1.9
Length (in.)
3.25
Width (in.)
7
Height (in.)
9.5
