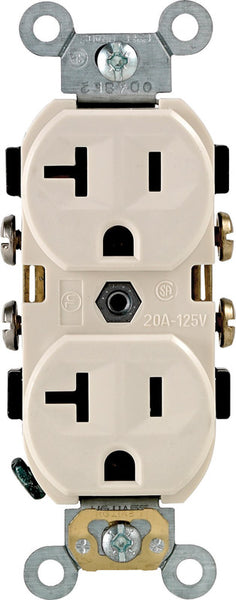

The Leviton 20 amp Duplex Receptacle, Commercial Grade with Self-Grounding Clip White (CR20W) is the perfect replacement for an existing receptacle or can be used to add a new receptacle. With simple side wiring installation can be done quickly and easily. The attached grounding clip saves time by automatically grounding itself when installed on a properly grounded wallbox.
The Leviton 20 amp Duplex Receptacle, Commercial Grade with Self-Grounding Clip White (CR20W) is the perfect replacement f...
See more
Product Details
California residents see
-
Prop 65 WARNINGSProp 65 WARNINGS WARNING: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm.
UPC
078477440230
Manufacturer Part No
0CR20-0TS
Brand Name
Leviton
Color
Light Almond
Outlet Configuration
Duplex
Volts
125 V
Maximum Amperage
20 amps
Packaging Type
Boxed
Product Type
Outlet
Number in Package
1 pk
Nema Type
5-20R
Grounded
Yes
Material
Thermoplastic
Number of Poles
2
Indoor or Outdoor
Indoor
Height
4.06 in.
Commercial or Residential
Commercial
Mounting Type
In-Wall
Width
1.53 in.
Body Material
Thermoplastic
Ground Clips
Brass-Plated
Face Material
Thermoplastic
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Depth
1.08 in.
Grounding Screw
Steel 8-32
Line Contacts
Brass Double Wipe .031 Thick
Number of Wire
3 Wire
Operating Temperature
-40 deg C to 60deg C
Screw Terminal Torque
14-18 in-lbs
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Strap Material
Steel
UL/CSA Listed
Both
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
Terminal Screws
Steel 8-32
Termination
Side Wire
Terminal Accom.
14-10 AWG
View more
Package Dimensions
Weight (lb)
0.2
Length (in.)
1.5
Width (in.)
2
Height (in.)
4.25
