Square D 200 amps 120/240 volt 23 space 40 circuits Combination Mount Ground Bar Kit

Model: PK23GTACP
More From Square D

Square D 200 amps 120/240 volt 23 space 40 circuits Combination Mount Ground Bar Kit

Model: PK23GTACP
More From Square D
$9.49
$9.59
77 In Stock
Delivered by ,

If ordered in the next hrs mins - Shipping to
Delivery Options
- +
Need Assistance? Our team is here to help! Contact us for advice or more details.
Customer Service Rep. Customer Service Rep.
Need Assistance? Our team is here to help!
Affordable Warehouse Prices
Affordable Warehouse Prices Warehouse Prices
Money Back - 30-Day Guarantee
Money Back 30-Day Guarantee 30-Day Guarantee
Reliable On-Time Delivery
Reliable On-Time Delivery On-Time Delivery

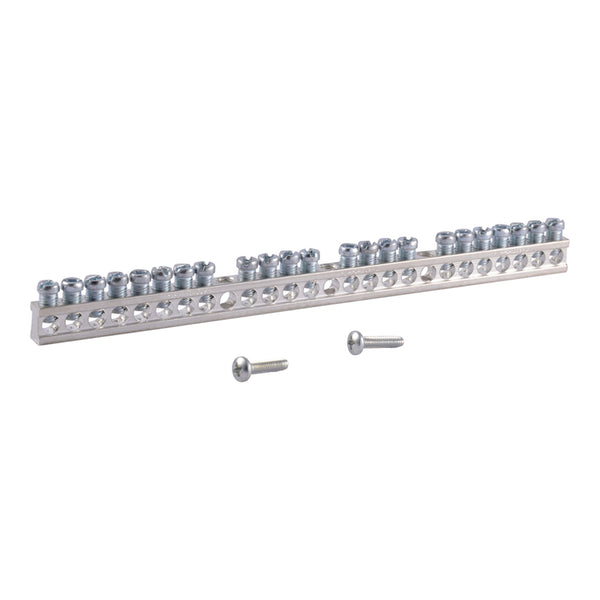

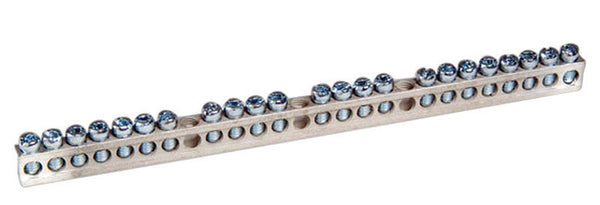

The Square D by Schneider Electric Ground Bar Kit is an important accessory in your home or business electrical load center. The aluminum 23 terminal ground bar kit is used in Square D load centers, CSED devices and NQOD and NF panel boards. The kit has 23 terminals, each accepting (1) #14 - #4 copper wire or (1) #12 - #4 aluminum wire or (2) #14 - #12 copper wire or (2) #12 - #10 aluminum wire.
  • UPC: 047569517396
  • Manufacturer Part No:
  • Feeds wires to neutral bar in load center
  • 23 terminals
  • Each terminal accepts (1) #14-#4 copper wire or (1) #12-#4 aluminum wire or (2) #14-#12 copper wire or (2) #12-#10 aluminum wire
  • Depth: 1.6 in.
  • UL Listed: Yes
  • Packaging Type: Boxed
  • Height: 3.3 in.
  • Circuit Protection Type: Main Lug
  • Width: 8.0 in.
  • Indoor or Outdoor: Indoor
  • Product Type: Ground Bar Kit
  • Mounting Type: Combination Mount
  • Maximum Number of Circuits: 40 circuits
  • Number of Spaces: 23 space
  • Volts: 120/240 volt
  • Brand Name: Square D
  • Amps: 200 amps
