Square D Pumptrol 80 psi 100 psi Pressure Switch
View product details
Square D Pumptrol 80 psi 100 psi Pressure Switch
View product details
In Stock
BULK DISCOUNT
$25.10
/each
Free Standard Shipping on qualified orders over $99!
Get it by
, !
if you order within hrs mins
Inventory details
Ship To:
Check Arrival Date and Cost
Buy
SAVE #/ea #%
Buy
SAVE #/ea #%
Buy
SAVE #/ea #%
Get Volume Pricing
Complete this form or give us a call at +1(800) 210 0132
We’re committed to your privacy. Learn more
Thanks for contacting us!
We'll get back to you as soon as possible.
Hide Form
Need help? Bilingual assistance from real people ready for you! Bilingual assistance from real people ready for you!
Available Monday - Saturday 9:00 AM EST - 8:00 PM EST
Earn 25 estimated points
Learn More >
$5 for every 100 points
Shop • Earn • Save
Join for FREE by creating your personal account
Earn on
every purchase
every purchase
$1 spent = 1 Point
Redeem for
store credit
store credit
100 Points = $5
Save all
year long
year long
Enjoy exclusive
deals & offers
deals & offers
Spend more,
earn more
earn more
Silver & Gold
tiers earn more
tiers earn more
Have more questions?
Our Experience Makers are here to help!

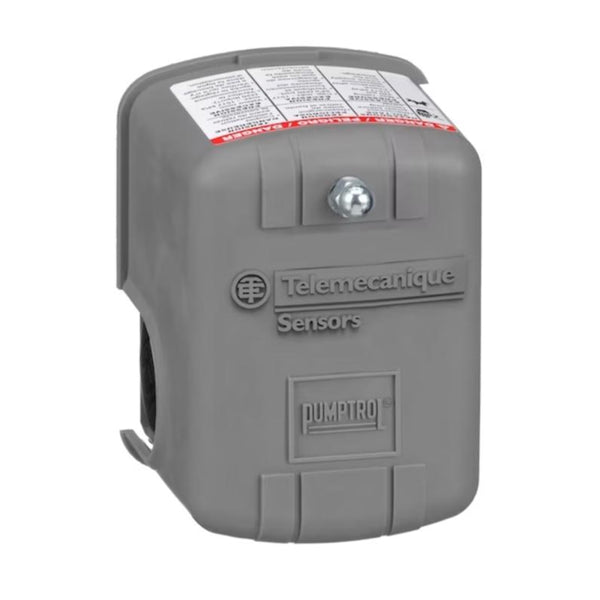

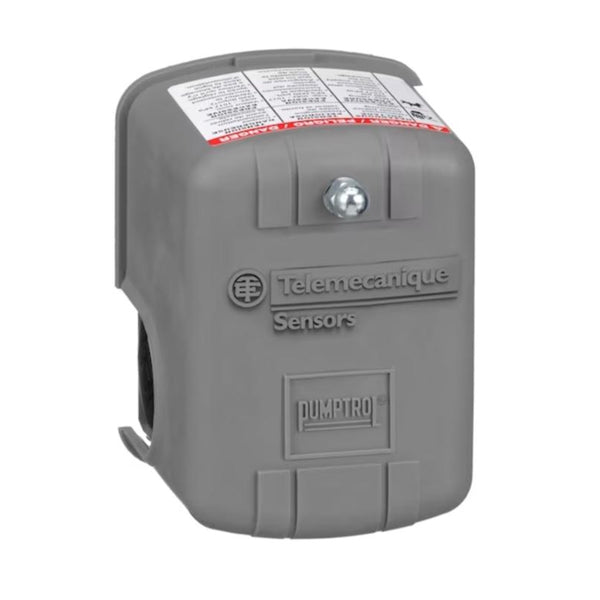

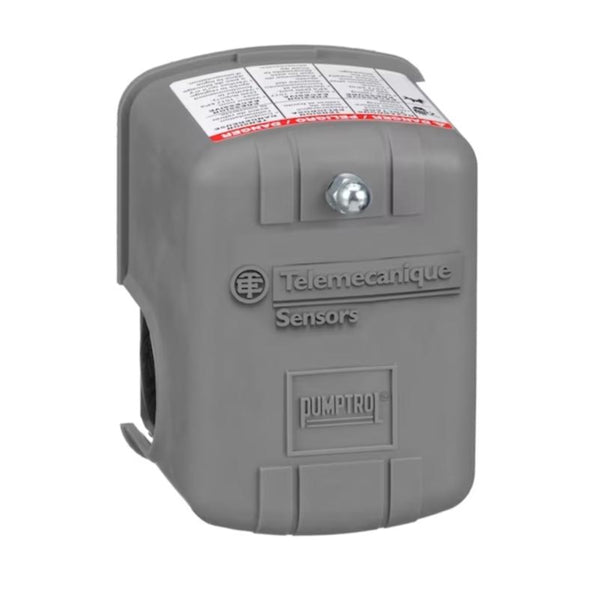

This Square D pumptrol FHG2J27CP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. For over 75 years, Square D pressure switches continue to meet the needs of our customers. The FHG2J27CP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 100 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.
This Square D pumptrol FHG2J27CP air-compressor pressure switch is the most trusted brand in residential, commercial and i...
See more
Product Details
California residents see
-
Prop 65 WARNINGSProp 65 WARNINGS This product can expose you to chemicals including Diisononyl phthalate (DINP), which is [are] known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.Prop65Warnings.ca.gov.
UPC
047569178221
Manufacturer Part No
FHG2J27CP
Brand Name
Square D
Minimum Pressure
80 psi
Sub Brand
Pumptrol
Product Type
Pressure Switch
Maximum Pressure
100 psi
Maximum Temperature
158 °F
Minimum Temperature
32 °F
Volts
230 V
Pipe Size
1/4 in.
Height
8 in.
Body Material
Polypropylene/Thermoplastic Resin
Width
5 in.
UL Listed
Yes
Thread Type
NPT
CSA Listed
Yes
Connection Material
Stainless Steel
View more
