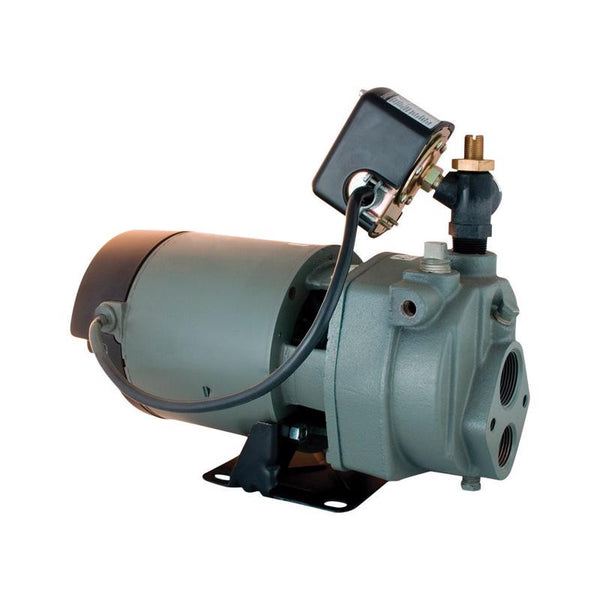

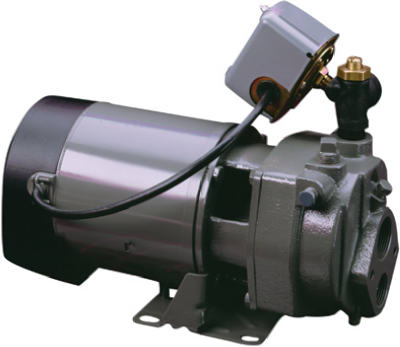

Star Water Systems 3/4 HP 1020 gph Cast Iron Convertible Jet Well Pump
View product details
Star Water Systems 3/4 HP 1020 gph Cast Iron Convertible Jet Well Pump
View product details
$393.14
In Stock
Get it by
, !
if you order within hrs mins
Inventory details
Does Not Qualify For Free Shipping.
Ship To:
Check Arrival Date and Cost
Get Volume Pricing
Complete this form or give us a call at +1(800) 210 0132
We’re committed to your privacy. Learn more
Thanks for contacting us!
We'll get back to you as soon as possible.
Hide Form
Need help? Bilingual assistance from real people ready for you! Bilingual assistance from real people ready for you!
Available Monday - Saturday 9:00 AM EST - 8:00 PM EST
Need help? Contact your Account Manager
Available Monday - Friday from 8:00 AM to 5:00 PM PST
Earn 393 estimated points
Learn More >
$5 for every 100 points
Shop • Earn • Save
Join for FREE by creating your personal account
Earn on
every purchase
every purchase
$1 spent = 1 Point
Redeem for
store credit
store credit
100 Points = $5
Save all
year long
year long
Enjoy exclusive
deals & offers
deals & offers
Spend more,
earn more
earn more
Silver & Gold
tiers earn more
tiers earn more
Have more questions?
Our Experience Makers are here to help!
3/4HP Cast iron convertible Jet pumps are located above ground, easy to install, and maintain for both shallow and deep well applications. Up to 1020 gallons per hour. Shallow well lifts of 25ft and deep well lifts to 110 ft. Single and double pipe applications. See Ejector Specifications and Well Adapter Selection Chart for correct jet assembly (sold separately). These units feature dual voltage motors can be adapted for 115V or 230V. Single-phase 60 Hz motor-includes American made pressure switch. 1 Inlet and 3/4 discharge. Use galvanized steel or NSF PW Schedule 40 PVC pipe and fittings. Do Not Use: DWV fittings. Pump must be primed before first operated. Add several gallons of water as the suction line will be filled in addition to the pump cavity. High tensile gray iron pump bodies with large water cavities for fast easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate tapings provided for mounting of pressure/vacuum switch and pump draining. Buna-N quadraseal is reusable provides positive seal between pump case/motor bracket. All pipe and priming plugs are coated with a non-hardening, non-toxic, non-corrosive material allows easy removal even after the pump has been in service for years. Standard shaft seal with ceramic and silicon carbide face is self-adjusting throughout the seal life. Patented uni-frame motor bracket is unique to the water system industry and designed to accept any NEMA J motor if motor replacement is ever necessary. Automatic overload senses both start and run winding heat to ensure complete winding protection. Protect pump and piping from freezing. Suction lift is the vertical distance from the lowest level of the water to the pump intake. See performance charts in installation instructions to determine pump lift. The horizontal distance is horizontal measurement between the pump suction and the water source. This distance may affect the ability of the pump to operate. If it is over 1
3/4HP Cast iron convertible Jet pumps are located above ground, easy to install, and maintain for both shallow and deep we...
See more
Product Details
California residents see
-
Prop 65 WARNINGSProp 65 WARNINGS Prop 65 WARNINGS: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
UPC
054757002145
Manufacturer Part No
JHU07
Brand Name
Star Water Systems
Housing Material
Cast Iron
Corrosion Resistant
Yes
With Tank
No
Hardware Included
No
Pump Switch Type
Pressure
Maximum Discharge Flow
1020 gph
Discharge Pipe Size
3/4 in.
Agency Compliance
CSA and UL
Horsepower
3/4 HP
Pump Type
Convertible Jet
Product Type
Well Pump
Volts
115/230 V
Amps
13.0/6.5 amps
Height
11 in.
Width
10.6 in.
Depth
19.5 in.
Maximum Temperature
130 °F
Minimum Temperature
40 °F
Maximum Feet of Head
90 ft.
Powered By
AC
Warranty
2 year Limited Parts and Labor
Self Priming
Non-Self Priming
View more
