Watts 3/4 in. D X 3/4 in. D Bronze Double Check Valve

Model: LF007M3-QT

More From Watts

Watts 3/4 in. D X 3/4 in. D Bronze Double Check Valve

Model: LF007M3-QT

More From Watts

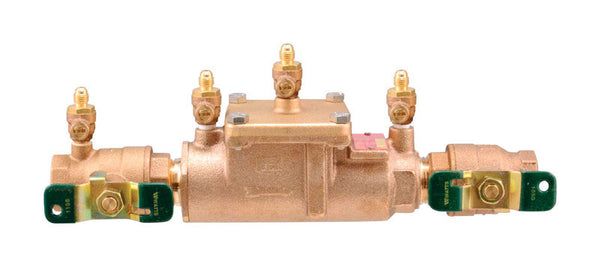

This 3/4 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections with Viega ProPress® adaptors, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.

Sold out.

FREE Shipping on all orders over $49*

This 3/4 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections with Viega ProPress® adaptors, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.
This 3/4 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering in...
See more

Dimensions

Weight (lb)
5
Length (in.)
12
Width (in.)
7.5
Height (in.)
5.25

Details

UPC
098268209730
Brand Name
Watts
Inlet Diameter
3/4 in.
Outlet Diameter
3/4 in.
Connection Type
Female
Material
Bronze
Valve Type
Double
Product Type
Check Valve
Maximum Temperature
180 deg. F
Activation
Pressure Driven
Packaging Type
Boxed
Average Lead Content
Lead-Free
Minimum Temperature
33
Maximum Pressure
175 psi
Mounting Orientation
Horizontal
Fits Pipe Size
3/4
Maximum Temperature
180 °F
Minimum Temperature
33 °F
California residents see
  • Prop 65 WARNINGS
    Prop 65 WARNINGS: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
